UNBRANDED
10pcs 650nm 6mm 5V 5mW Red Dot Laser Diode Modules with Wire Leads
Regular price
$5.00 USD
Regular price
Sale price
$5.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

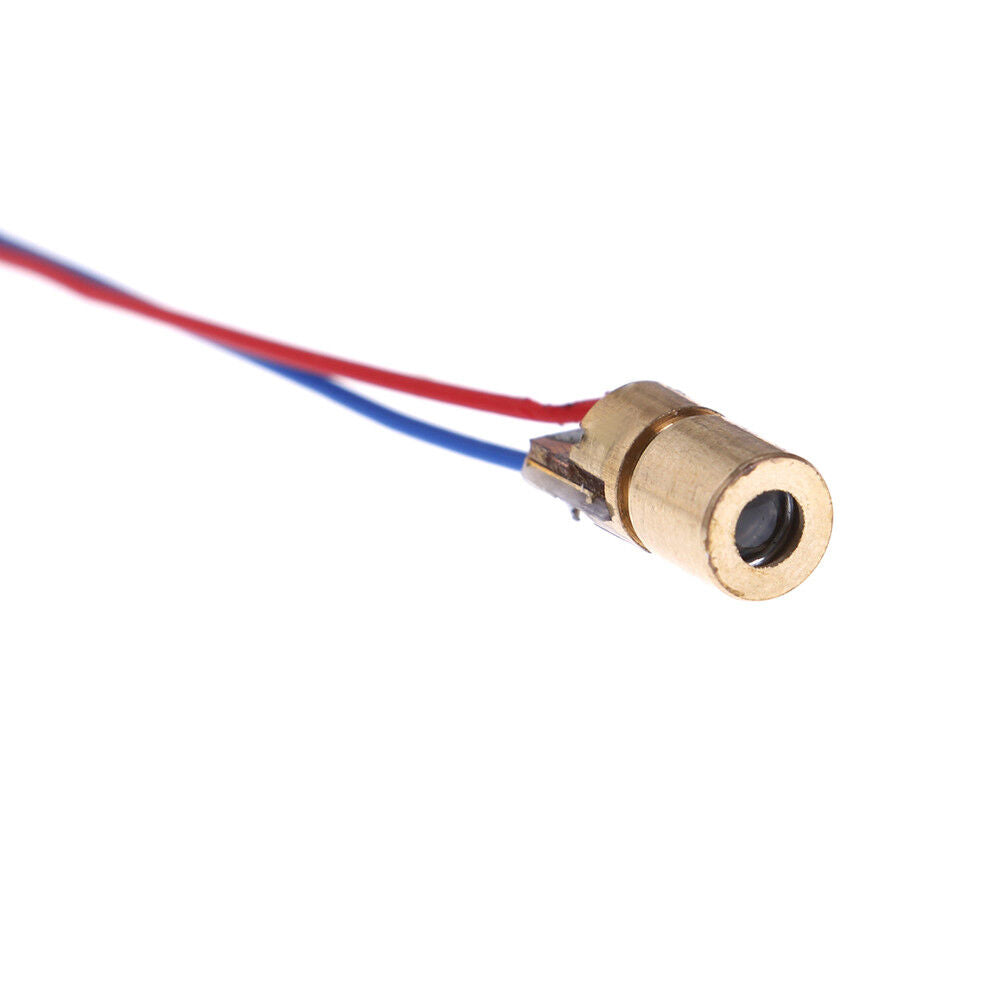

650nm 6mm 5V 5mW Red Dot Laser Diode Module with Wire Leads
This red (650nm wavelength) laser diode module is easily powered by a 5V DC USB power supply or battery and can be used as a pointer, for illumination, and light therapy. Wires for the DC power are soldered to the 6mm brass laser diode housing. Simply connect the power to use! The Red lead is Positive (+), the Blue or Black lead is negative (-).
Specifications:
Spot mode: Dot, continuous output
Spot size: φ10 mm ~ φ15mm at 15 meters (these diodes do not include a collimating lens)
Laser wavelength: 650nm (Red)
Light power: ~5mW Class 3R
Supply Voltage: 5VDC Maximum, typically will generate laser output at >3V

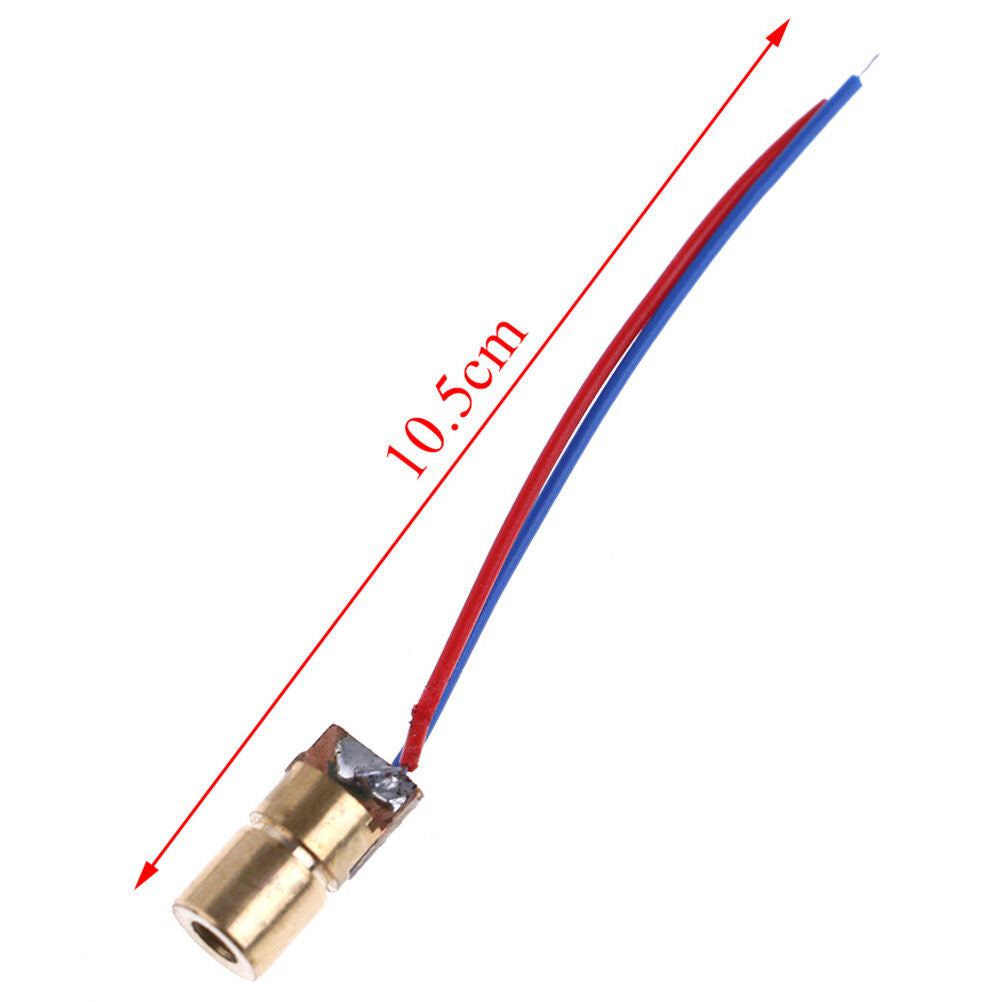

Power lead length: ~75mm
Laser Diode Shell (housing) Dimensions: 6mm x 13.5mm
Laser Diode Shell Material: Brass
Operating Current: <40mA
Operating temperature: -36C ~ 65C
Storage temperature: -36C ~ 65C
Weight (1 piece): ~1.4 Grams
NOTE: These laser diodes do not include a collimating lens and are not replacements for a laser pointer.
Package Includes:

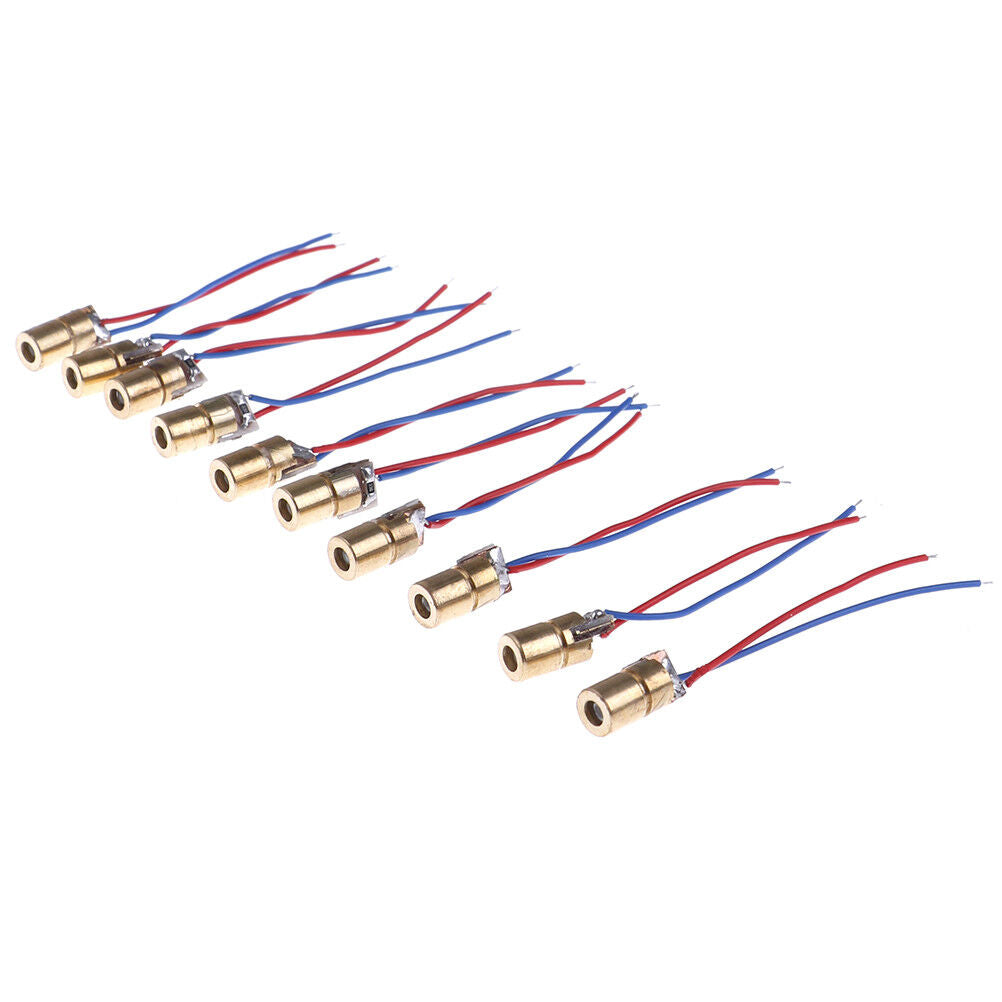

10pcs 650nm 6mm 5V 5mW Red Dot Laser Diode Modules with Wire Leads
This red (650nm wavelength) laser diode module is easily powered by a 5V DC USB power supply or battery and can be used as a pointer, for illumination, and light therapy. Wires for the DC power are soldered to the 6mm brass laser diode housing. Simply connect the power to use! The Red lead is Positive (+), the Blue or Black lead is negative (-).
Specifications:
Spot mode: Dot, continuous output
Spot size: φ10 mm ~ φ15mm at 15 meters (these diodes do not include a collimating lens)
Laser wavelength: 650nm (Red)
Light power: ~5mW Class 3R
Supply Voltage: 5VDC Maximum, typically will generate laser output at >3V
Power lead length: ~75mm
Laser Diode Shell (housing) Dimensions: 6mm x 13.5mm
Laser Diode Shell Material: Brass
Operating Current: <40mA
Operating temperature: -36C ~ 65C
Storage temperature: -36C ~ 65C
Weight (1 piece): ~1.4 Grams
NOTE: These laser diodes do not include a collimating lens and are not replacements for a laser pointer.
Package Includes:
10pcs 650nm 6mm 5V 5mW Red Dot Laser Diode Modules with Wire Leads
