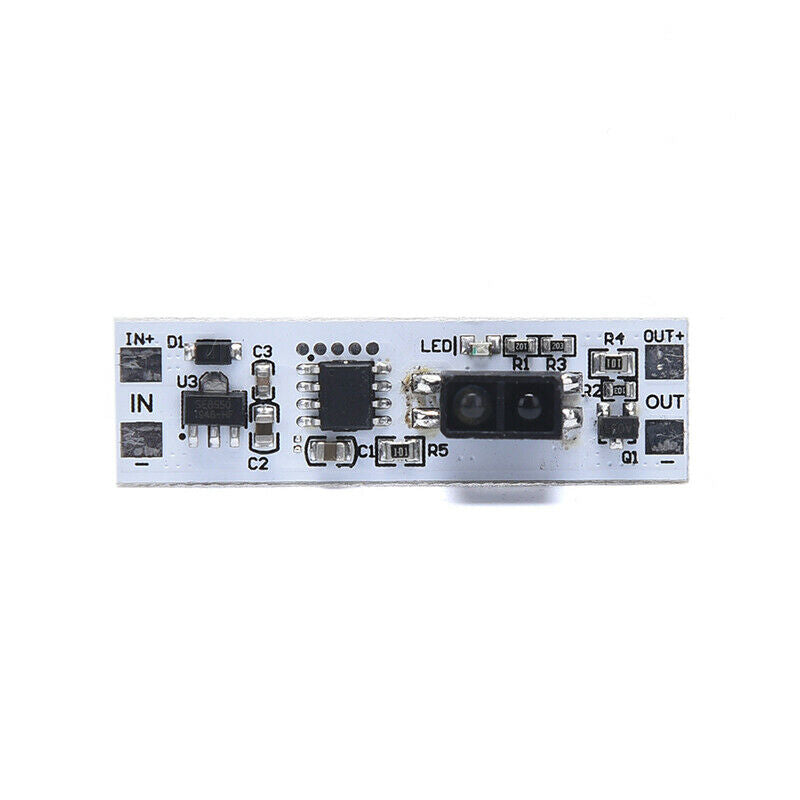

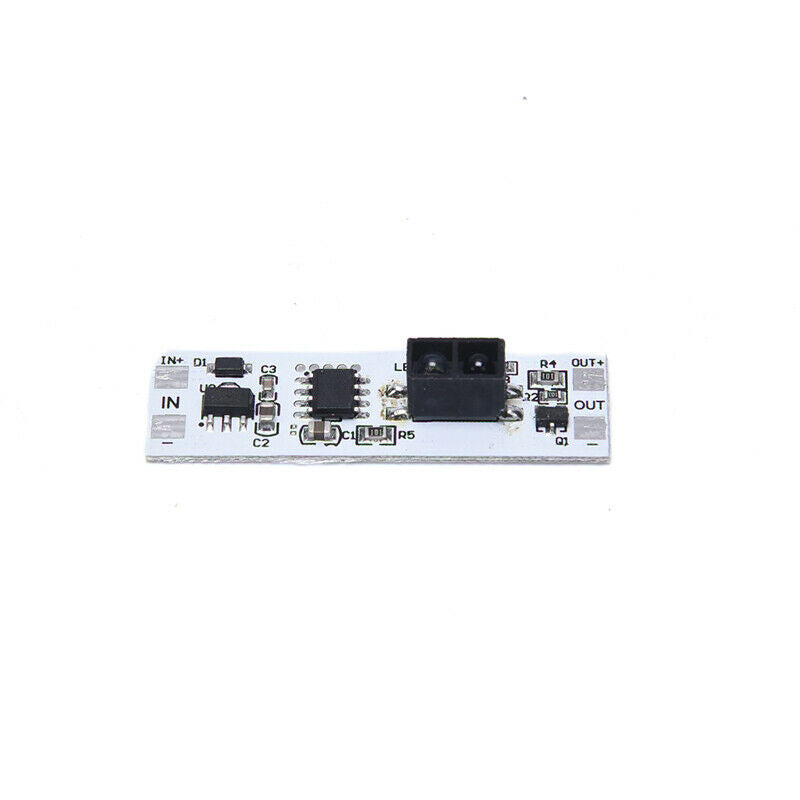

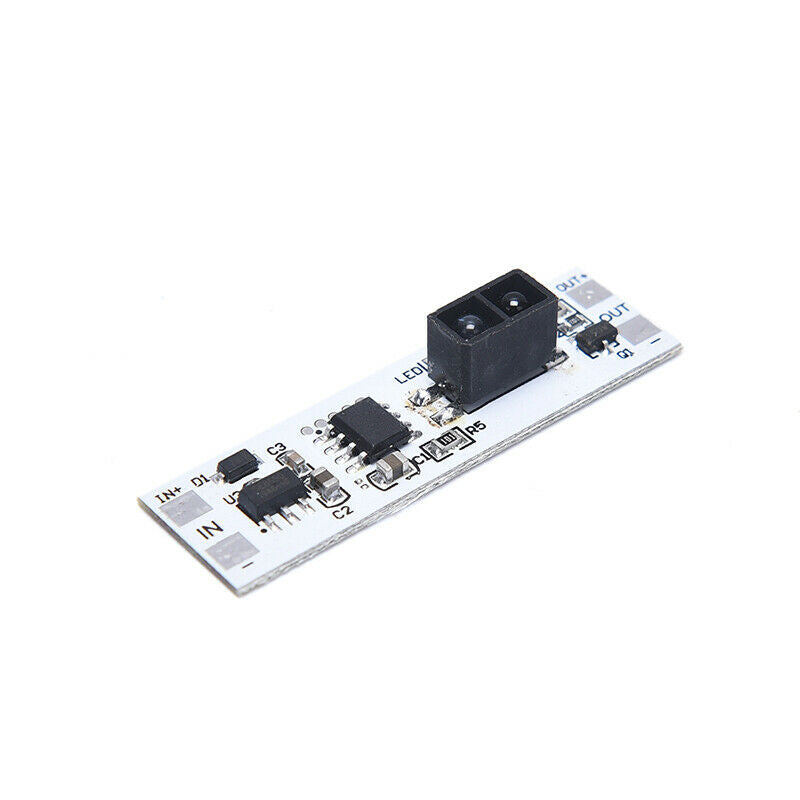

XK-GK-4010A Hand Sweep Switch Module 5V-24V Short Distance IR LED LC V2

Scan Sensor Hand Sweep Switch Module 5V 12V 24V Short Distance IR LED LC V2

Product introduction:
Hand scan sensor switch, used for non-contact hand scan control of LED lights, hand scan distance up to 30~80mm, infrared mode is used to block the sensor

Product parameters:
Name: Hand scan sensor switch module
Working voltage: input: 5V-24V output: equal to the input voltage
Output form: switch + indicator light

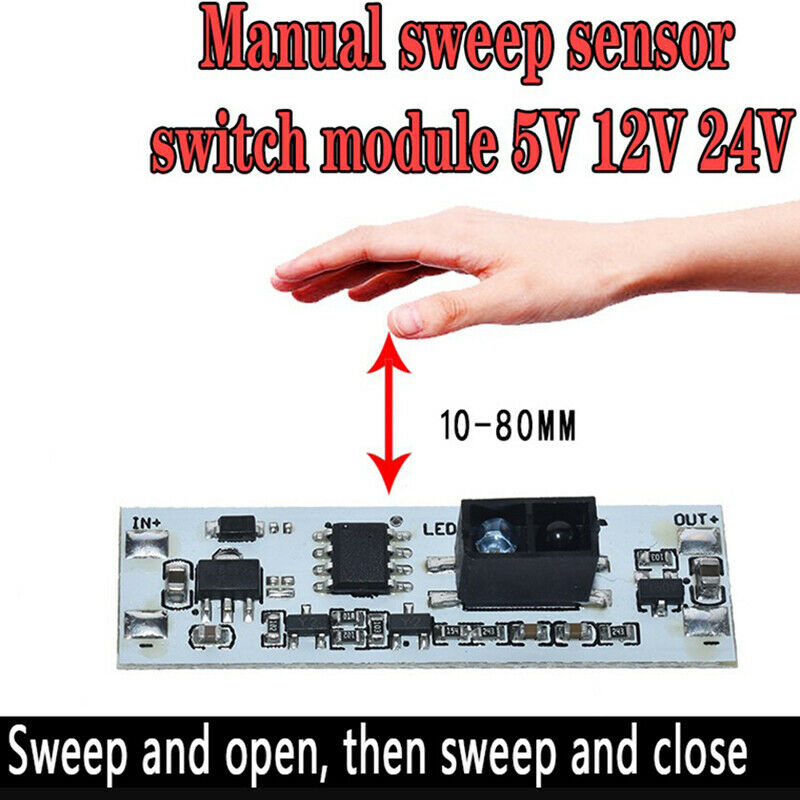

Sensing range: 30-80mm

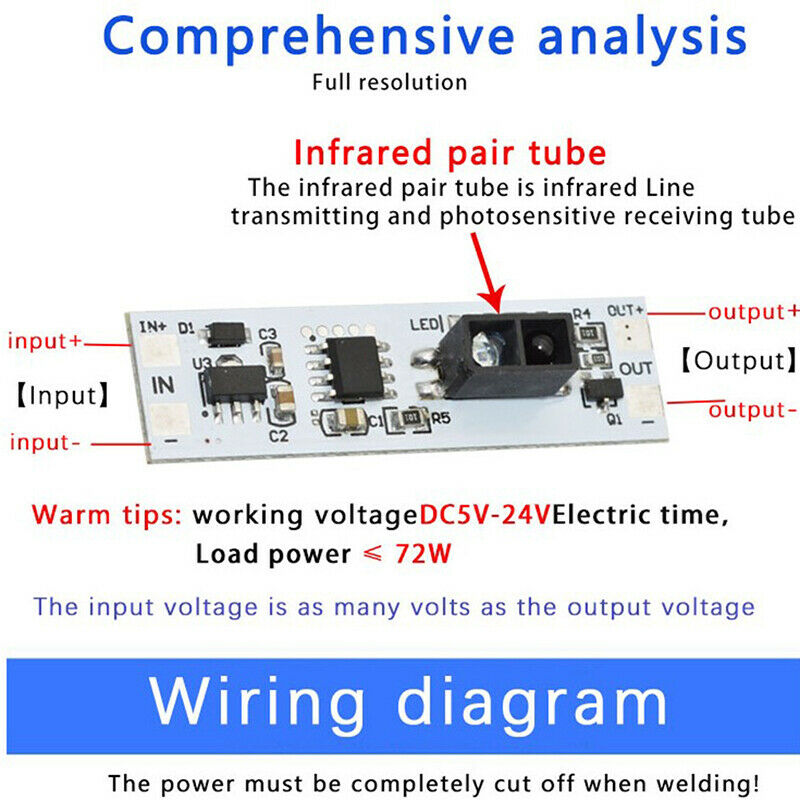

Induction principle: infrared
Load power: 72W MAX
Delay off time: No, scan and turn on/off
Scope of application: DC constant voltage
Load current: resistive 3A
Standby current: 10-15mA VIN: 5-24V

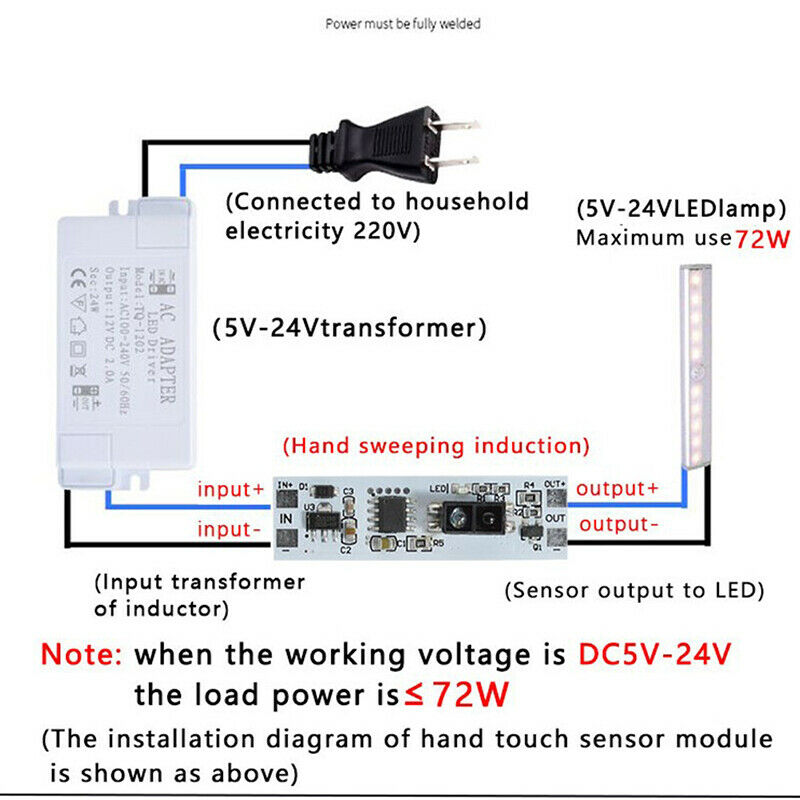

Note: The controller is only used for the switch control of LED lights, and cannot be used with inductive loads (such as inductors, motors, relays, etc.)

Package Includes:
1 x Scan Sensor Hand Sweep Switch Module 5V-24V Short Distance IR LED LC V2
